Geo Tube
Breakwater Geotextile Tubes
Geotextile Tubes
The Geo Tube is a versatile sediment control device that uses high strength fabrics to filter out items such as soil, while still allowing a clear flow of water to exit the tube.

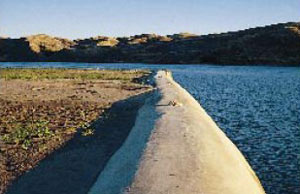

Due to its durability and strength, these geotextile tubes have proven to be an effective and natural barrier when implemented as a breakwater along coasts and shorelines. Made from woven geotextile fabric that is UV stable, these breakwater tubes can withstand outdoor elements and exposure, helping to protect homes, shorelines, and beach-front properties.
As a filtering fabric, geo tubes are also great for agricultural composting, WTTP sludge removal, and dewatering activities in power or waste plants.
 |
If you have questions about products, give us a call at (+1) 772.646.0597 or toll free at (+1) 888.703.9889 or request a price quote. |
Features:
- Using High Strength Geosynthetic Fibers
- Provides High Water Flow
- UV Stable
- Fine Pore Structure
Benefits:
- Contains Sludge and Sediment
- Still Allows Water to Flow Through
- Can Provide a Natural Barrier Along Beaches
- Protects Homes and Beach Hotels from Water Damage Due to Storms
Typical Erosion Control Applications:
- Breakwater for Hotels and Beach Front Homes
- Agricultural Composting
- WTT Sludge Removal
- Dewatering in Waste Water Plan
- Mining Operations
Geo Tube Technical Specifications |
||||
| Property | Value | Extra Notes | ||
| Length | 50', 100', 150', 200' | Other Lengths by Special Order | ||
| Width (laying flat) | 7.5', 12', 22.5', 30', 37.5', 45' | - | ||
| Circumference | 15', 30', 45', 60', 75', 90' | - | ||
| Filling Port Spacing | 1, 2, or 3 ports | Equally Spaced Depending on the Tube Length and Volume | ||
| Bracing Loop | Every 20' OC | - | ||
| Size and Estimated Capacity per Tube | ||||
| Circumference | Tube Height (ft) | Tube Volume (cy/ft) | ||
| 15 | 3.5 | 0.6 | ||
| 30 | 5 | 2 | ||
| 45 | 5.5 | 3.5 | ||
| 60 | 6 | 5.4 | ||
| Material Specification | ||||
| Fabric | Woven Geotextile | UV Stable | Weight/Unit Area oz/sq.yard (gr/sq. m) |
Color |
| Polypropylene | Yes | Yes | 16.6 (560) | Black |
| Polyester | Yes | Yes | 17.7 (600) | White |
| Polyester | Yes | Yes | 24 (810) | White |
